● Intel I5 (5200U) Proccessor
● 8 GB RAM Memory Options
● 128 GB mSATA SSD Disk
● 15.6 Inch Multi Touch Display
● 10.1 Inch Customer Display (Optional)
● 1368 x 768 Display Resolution
● 5 x USB Port, 1 COM Port
● Support Windows 7 / 8 / 8.1 / 10 (Not Installed)
| System | |
| Proccessor | Intel I5 (5200U) 2 Core 1.7 Ghz |
| Memory | 8 GB DDR3 (1600 Mhz) |
| Disk | 128 GB mSATA SSD |
| OS Support | Windows 7, Windows 8.1, Windows 10 (Not Installed) |
| Display | |
| Panel | User Display: 15.6 Inch BacLight LED |
| Customer Display: 10.1 Inch BacLight LED (Optional) | |
| Resolution | User Display: 1366 x 768 Pixel |
| Customer Display: 1280 x 800 Pixel | |
| Touch Screen | 10 Point Multi Touch Capacitive |
| Brigtness | 220 ~ 250 Nits |

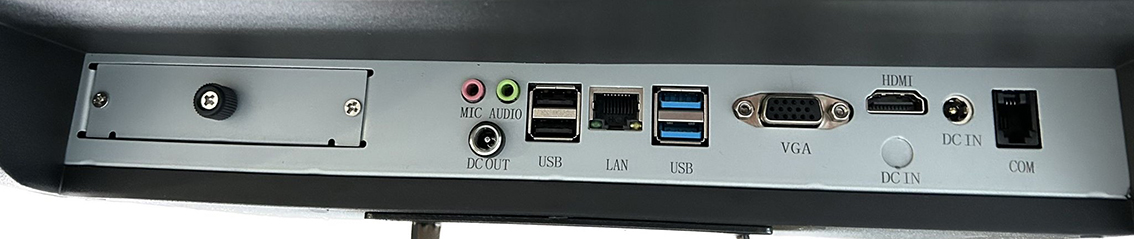

| Input / Output Ports | |
| DC IN | 1 Pcs (12V, 4A) |
| VGA | 1 Pcs (DB-15 Pin) |
| HDMI | 1 Pcs |
| USB 3.0 | 5 Pcs |
| LAN | 1 Pcs (RJ-45) 100 Mbit |
| RS-232 | 1 Pcs |
| Mic In | 1 Pcs |
| Speaker | 1 Pcs |
| Electrical | |
| Power Consumption | - |
| Environmental | |
| Temperature | Operation: -10 °C ~ 60 °C |
| Storage :-20 °C ~ 70 °C | |
| Humidty | Operation: %0 ~ %95 |
| Storage :%10 ~ %90 | |
| Physical | |
| Package Dimensions | Width: 356 mm |
| Height: 360 mm | |
| Depth: 290 mm | |
| Gross Weight | 8 Kg. |
| Color | Black |
| Case Material | Plastic |
| Package Contents | |
| Package Contents | Power Cable (1 Pcs) |
| Driver CD (1 Pcs) | |
| Turkish | ||
| Data Sheets |
 |
|
| English | ||
| Data Sheets |
|
|
| User Manual |
|
|
