● Android 10 (Q) Operation Systems
● Qualcomm® SDA660 2.3 Ghz Proccessor
● 3/4 GB RAM, 32/64 GB Flash ROM Options
● 4.3 Inch (800 x 480 pixel) Color Touch Screen
● Wifi and Bluetooth Communication Technology
● 1,8 mt (6 ft) Drop Resistance
● IP65 Protection Class
● 28/37/47 Physically Key Options
● "Green Spot" Light For Good Read Feedback
| System | |||
| Micro Processor | Qualcomm® SDA660 2.3 Ghz Proccessor | ||
| Memory | 3/4 GB RAM, 32/64 GB Flash ROM | ||
| Operation System | Android 10 (Q) | ||
| GMS Support | Available (GMS=Google Mobile Service) | ||
| Expansions Slots | Micro Secure Digital slot (SDXC) up to 256 GB | ||
| Audio | Wideband Speech (HD Audio) supported on Android | ||
| Camera |
Rear Camera: Resolution: 13 MP;
Illumination: User controllable LED flash - Not available on XLR version - |
||
| Sensors | |||
| Accelerometer | 3-Axis accelerometer to detect orientation | ||
| Gyroscope | Senses angular velocity | ||
| Ambient Light | Auto adjusts display backlight | ||
| Proximity |
Presentation Mode sensor for 2D models only (based on ToF).
- Not available on the XLR version - |
||
| Display | |||
| Display Type | WVGA | ||
| Resolutioin | 800 x 480 Pixel | ||
| Features |
TFT / Transflective LCD
(High brightness for Indoor and Outdoor High Visibility) |
||
| Dimension | 4.3" (Inch) | ||
| Touch Screen |
6 points multi-touch capacitive panel with hardened Gorilla Glass 3 (Support for gloves and stylus) |
||

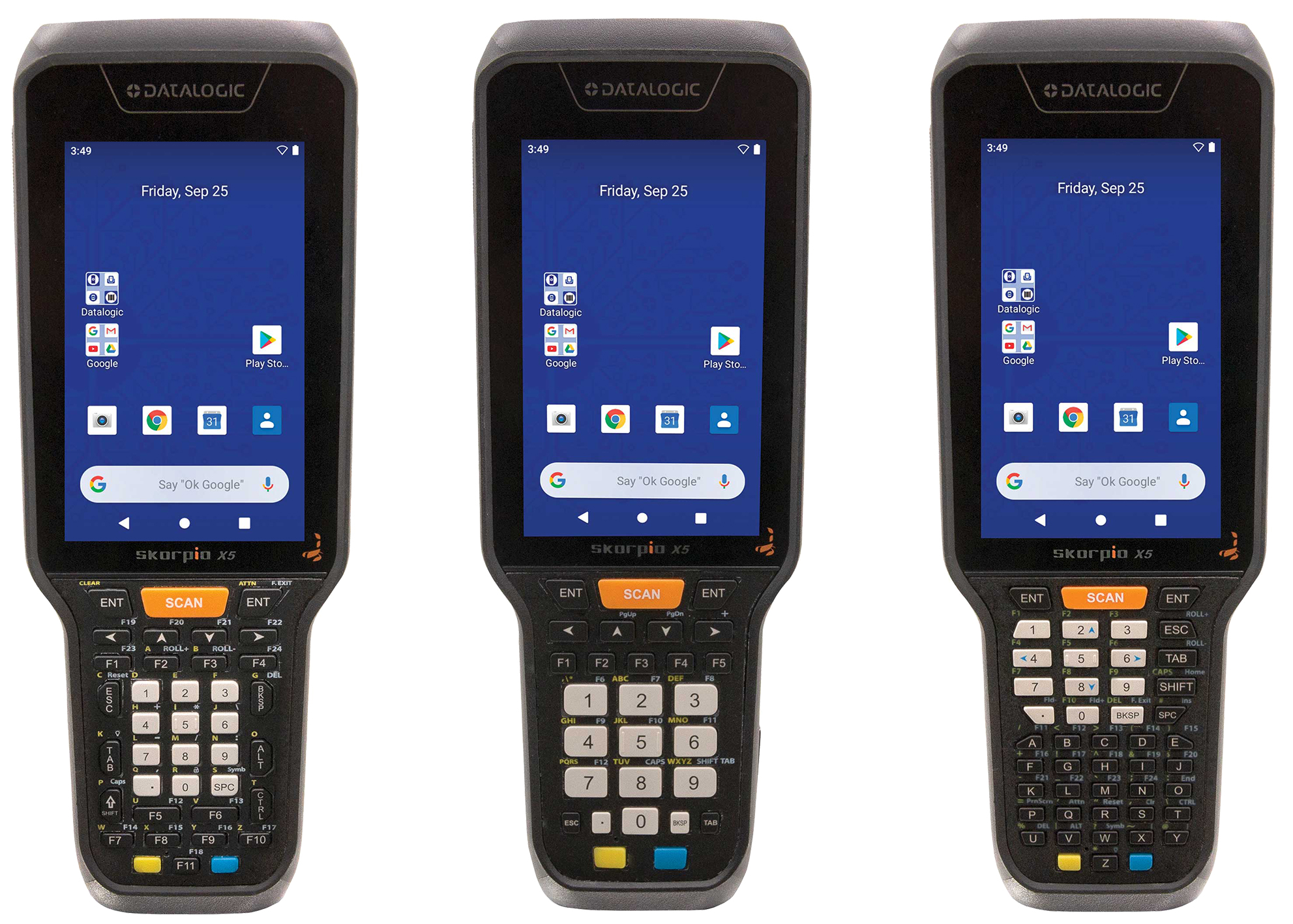

| Keypad | |||
| Keypad Types | 24 Keys Numeric | ||
| 38 Keys Function Numeric | |||
| 47 Keys Alpha Numeric | |||
| Feature | With BackLigth | ||
| Communication | |||
| USB | USB Type-C (USB 3.1) | ||
| Wifi | Bands: IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc(for indoor localization); IPv4, IPv6, 2x2 MU-MIMO for higher throughput and coverage | ||
| Frequency range: Typically 2.4 GHz and 5 GHz bands (Country dependent) | |||
| Bluetooth | Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support | ||
| NFC |
Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
- Not available on the XLR version - |
||
| Electrical | |||

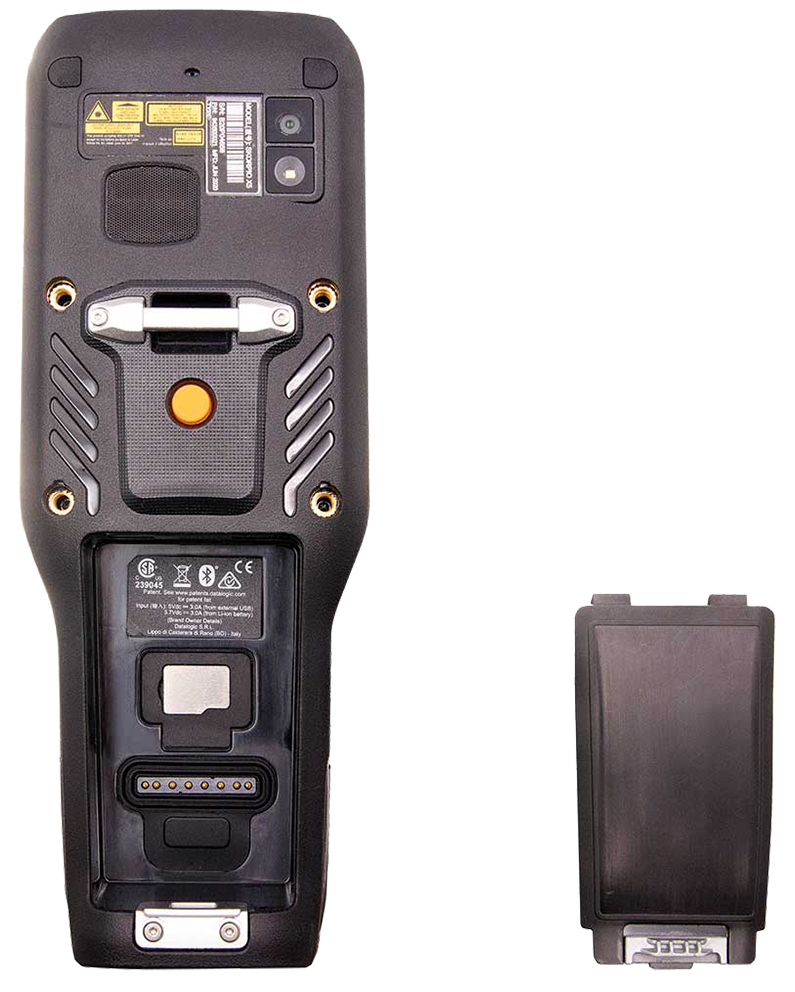

| Battery Type | Rechargeable Li-Ion Battery (Removable) | ||
| Battery Capacity | Standart: 3.7V 3500 mAh (3460 mAh) (12.8 Watt-Hours) | ||
| High Capacity: 3.7V 6200 mAh (6080 mAh) (22.1 Watt-Hours) | |||
| Wireless Charging | 15 W fast charging | ||
| Physical | |||
|
Dimensions
|
Standart Model | With | 78,5 mm |
| Heigth | 218 mm | ||
| Thickness | 31,3 mm/35,6 mmm | ||
| XLR Model | With | 89,2 mm | |
| Heigth | 220,3 mm | ||
| Thickness | 52,6 mm | ||
|
Weight
|
Standart Model | Without Pistol | 488 gr (With Standart Battery) |
| 514 gr (With High Capacity Battery) | |||

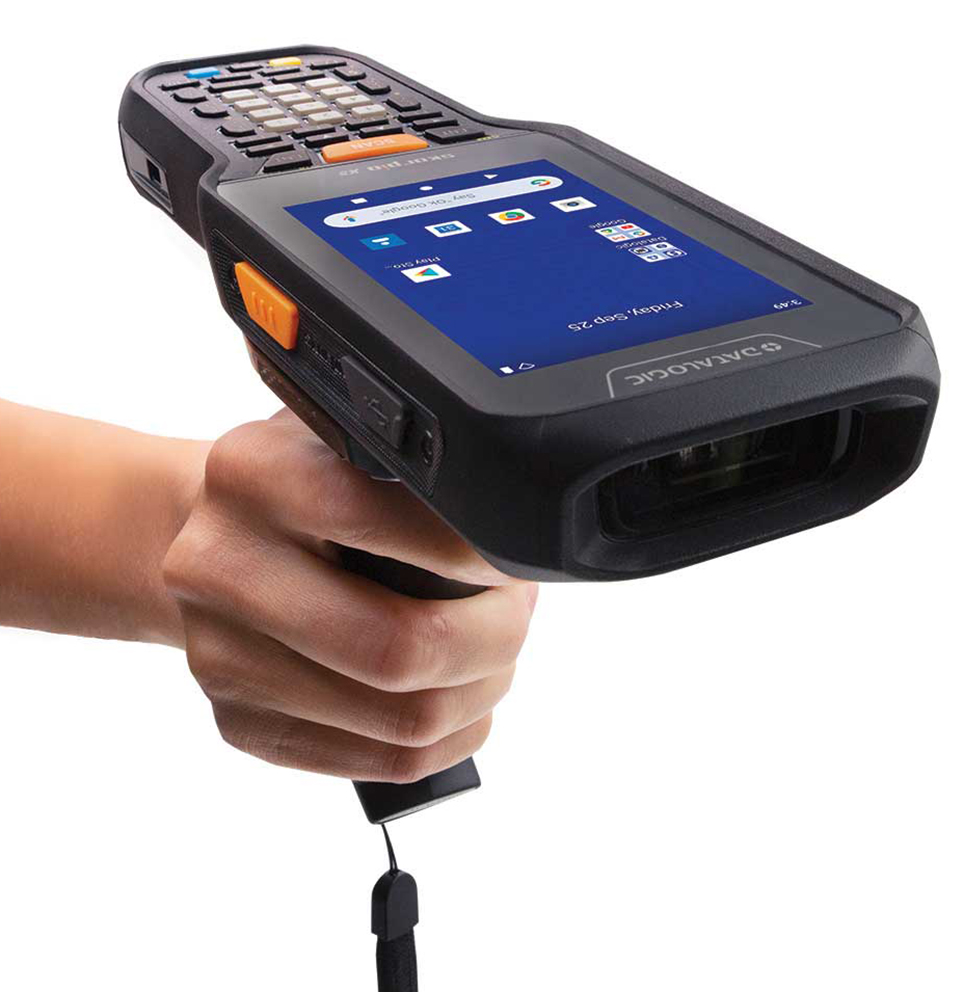

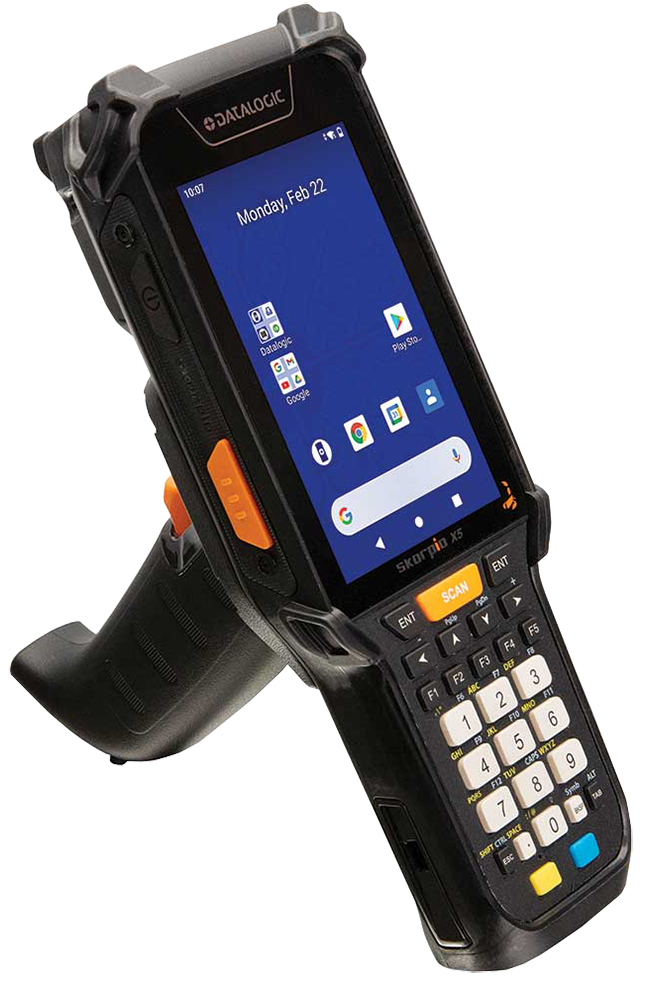

| With Pistol | 600 gr (With Standart Battery) | ||
| 626 gr (With High Capacity Battery) | |||
| XLR Model | With Pistol | 665 gr (With High Capacity Battery) | |
| Enviromental | |||
| Operating temperature | -20°C to 50°C | ||
| Storage temperature | -30°C to 70°C | ||
| Drop test to Concrete | Withstands multiple drops from 1.8 m / 6.0 ft onto steel or concrete according to IEC 60068-2-32 procedure 1. Skorpio X5 XLR with the Rubber Boot applied withstands multiple drops from 2.0 m / 6.6 ft onto steel or concrete according to IEC 60068-2-32 procedure 1. | ||
| Tumbles | Withstands 2,000 tumbles from 1 m / 3.3 ft, according to IEC 60068-2-32 procedure 2 | ||
| Sealing | IP65 | ||
| Chemical Resistance | Chemical cleanser and industrial oil resistant | ||
| Barcode Scanner | |||
| 1D Imager | Sensor |
Linear CCD 2500 pixel sensor (Sharp green LED scan line) |
|
| Print Contrast | 15% | ||
| Depth of Field | 40 mm ~ 740 mm (13 Mil EAN) | ||
|
2D Imager (Standart Range) |
Illumination | White LED | |
| Aiming | 650 nm Laser | ||
| Print Contrast | 25% | ||
| Depth of Field | 40 mm ~ 740 mm (13 Mil EAN) | ||
| 65 mm ~ 400 mm (15 Mil-DM) | |||
|
2D Imager (Mid Range) |
Illumination | White LED | |
| Print Contrast | 25% | ||
| Depth of Field | 8 cm ~ 100 cm (13 Mil-EAN13) | ||
| ~ 160 cm (55 Mil-DM) | |||
| ~ 500 cm (100 Mil-Code 39) | |||
| Datamatrix (10 mil): 0,15 m ~ 0,9 mt | |||
| ~ 400 cm (160 Mil-Datamatrix) | |||
|
2D Imager (Extra Long Range (XLR) |
Illumination | Red LED | |
| Print Contrast | 20% | ||
| Depth of Field | ~ 320 cm (13 Mil-EAN13) | ||
| ~ 650 cm (55 Mil-DM) | |||
| ~ 1000 cm (40 Mil Code 128/100 Mil-DM) | |||
| ~ 2000 cm (100 Mil-Code 128) | |||
| Decoding Capability | |||
| 1D / Linear | CodaBar, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Discrete 2 of 5, UPC/EAN, GS1 DataBar™ linear codes, Interleaved 2 of 5, Matrix 2 of 5, MS | ||
| 2D Codes | Aztec Code, Data Matrix, Maxi Code, Micro QR Code, QR Code. DotCode (only supported by DE2172-AF (XLR) | ||
| Postal Codes | Australian Post, Japan Post, KIX Code, PLANET, POSTNET,Royal Mail Code (RM4SCC), USPS Intelligent Mail | ||
| Stacked Codes | Micro-PDF417, PDF417, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1-128 Composite | ||
| Safety & Regulatory | |||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. | ||
| Enviromental Compliance | Complies to EU RoHS Directive 2011/65/EU | ||
| Laser Classification | VLD - Class 2 IEC/EN60825-1; Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice No. 50 dated June 24, 2007 | ||
| LED Classification | Exempt Risk Group IEC/EN62471 | ||
| Software | |||
| Applications | Pre-licensed device and browser lockdown powered by 42Gears; Datalogic WiFi Guard; compatible with Enterprise class PTT by Zello; Datalogic’s SoftSpot soft triggers | ||
| Provisioning | Scan2Deploy Studio, Android Zero-Touch, QR Code enrollment | ||
| Configuration and maintenance | Scan2Deploy Studio, OEMConfig | ||
| Software Maintenance | Datalogic Shield: recurring security patches, firmware updates, and OS upgrades | ||
| Development | Android: Datalogic Android SDK, Xamarin SDK, Ionic Cordova SDK and React Native SDK | ||
| MDM | Compatible with: SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears SureMDM, Microsoft Intune | ||
| Terminal Emulation | Compatible with: StayLinked SmartTE, Ivanti Velocity | ||
| Accessories | |||
| Optional Items | Single Slot Dock | ||
| Belt Holster | |||

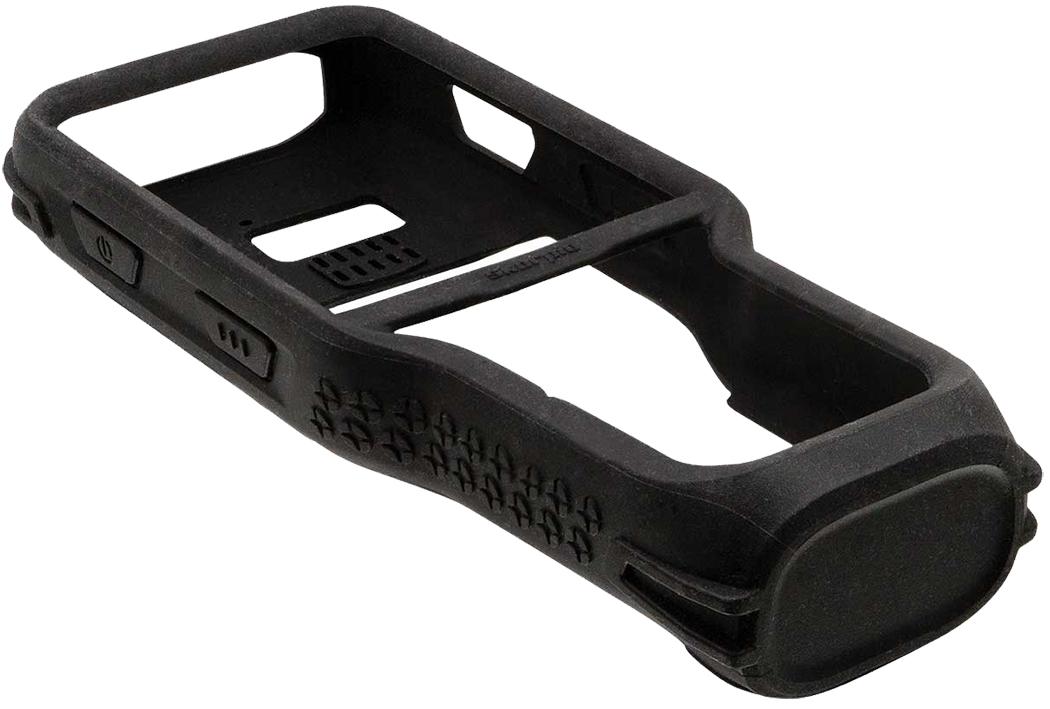

| Rubber Boot | |||
 |
 |
 |
|

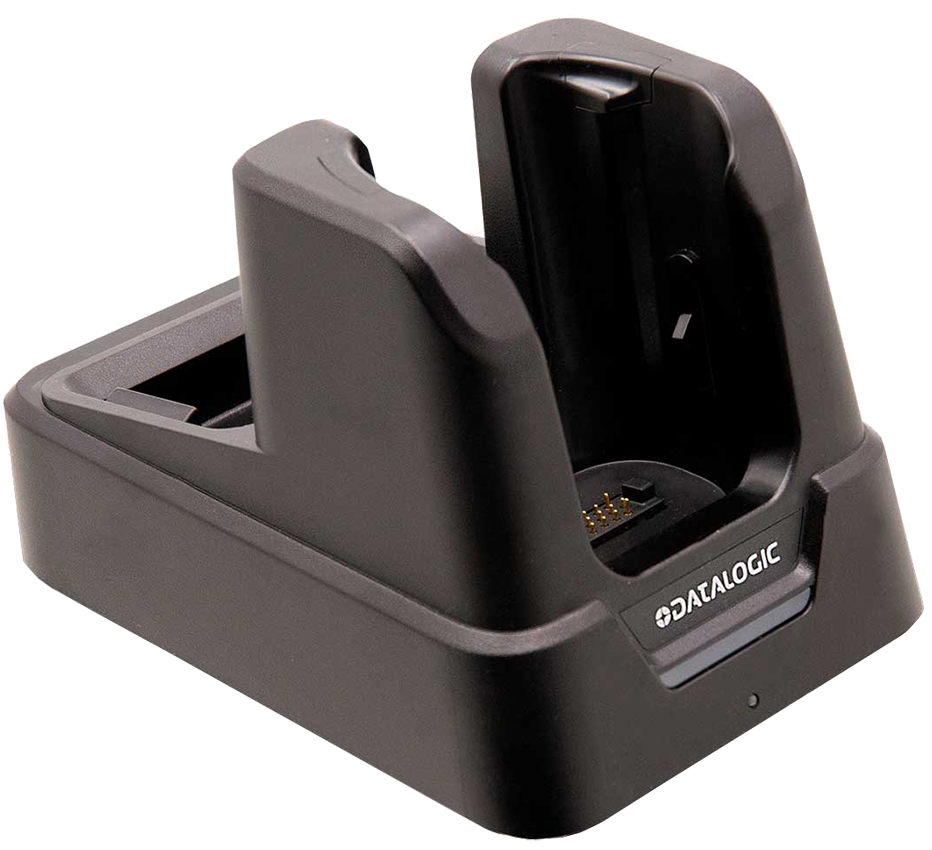

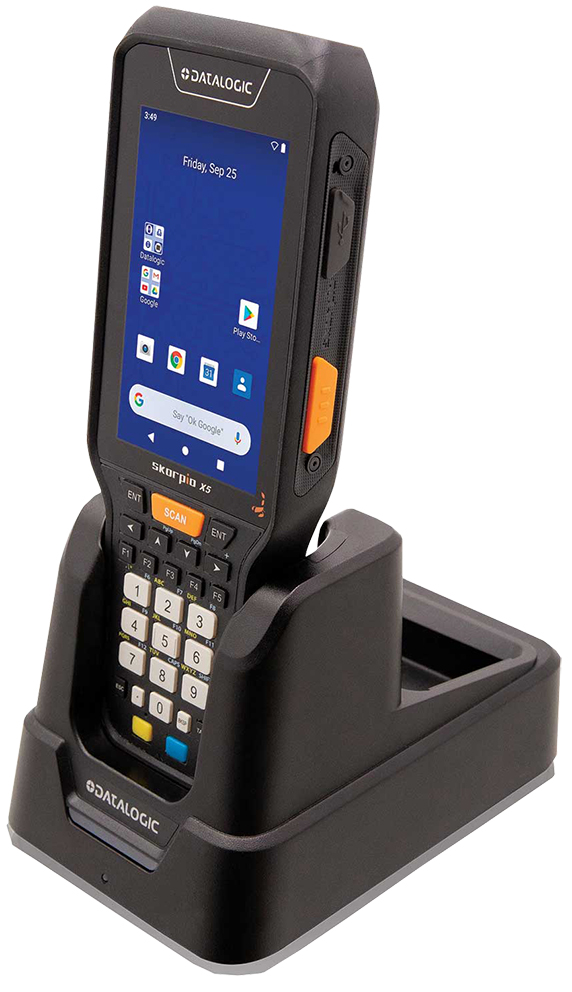

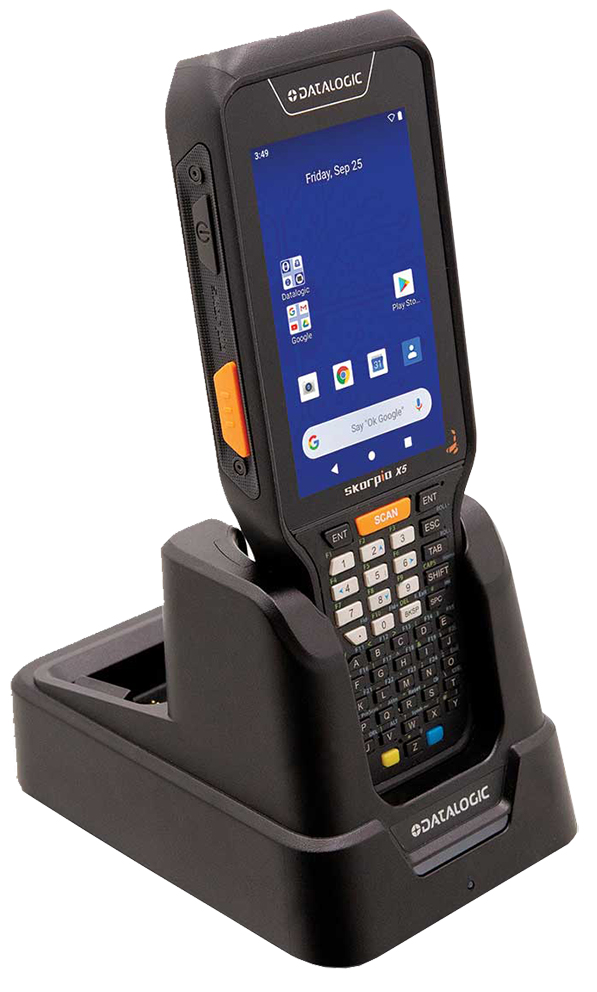

Single Dock (Wired) (P/N: 94A150107) |

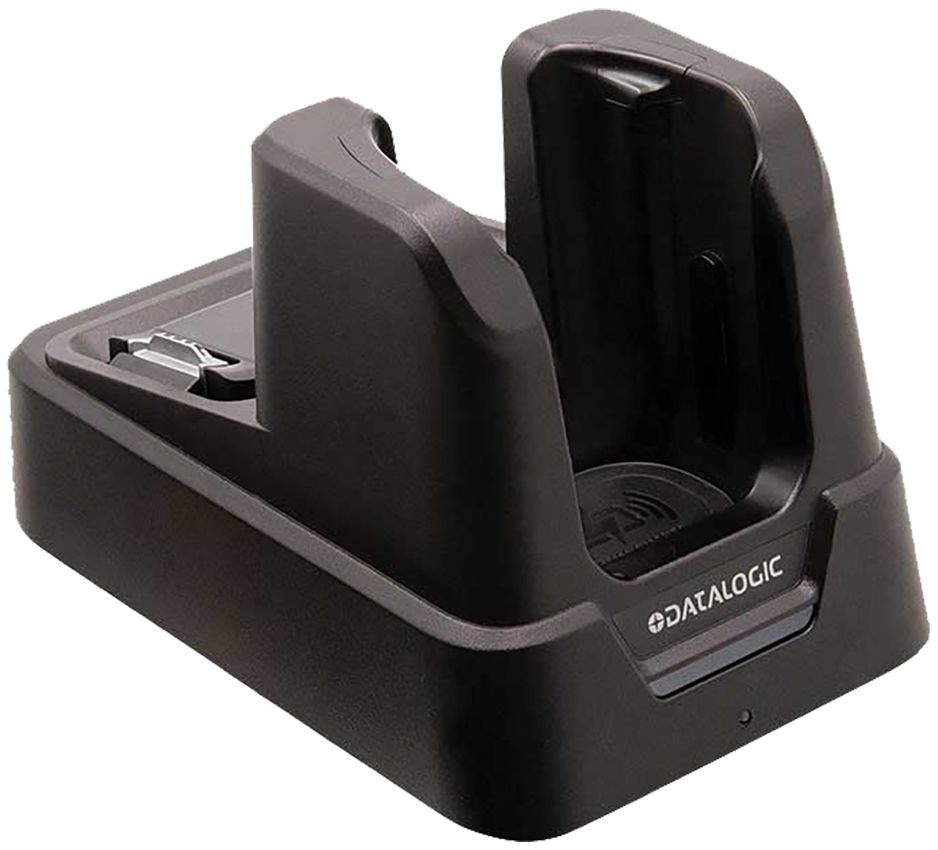

Single Dock (Wireless) (P/N: 94A150106) |

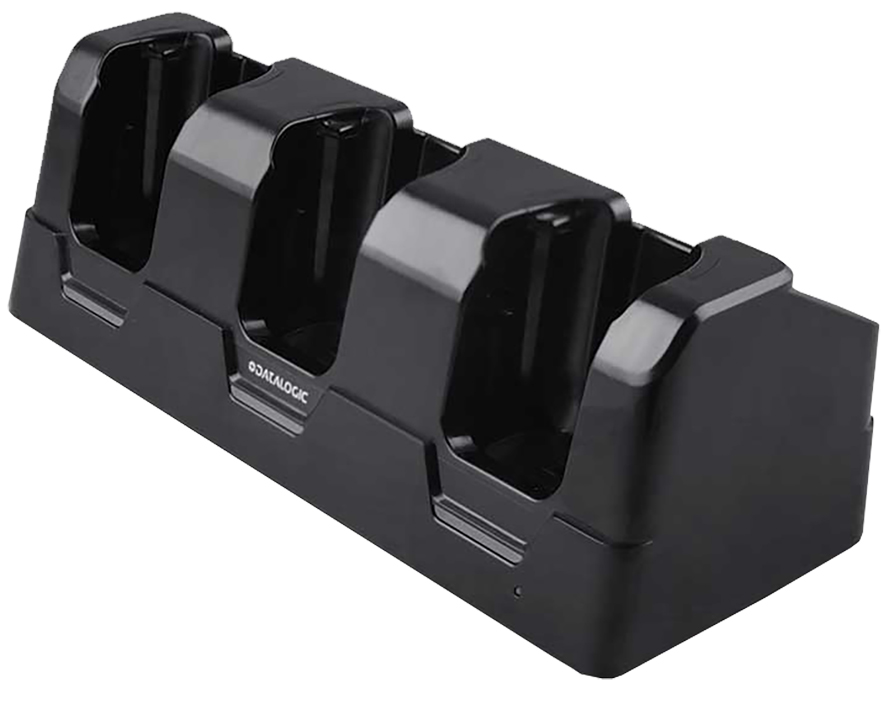

3 Slot Dock (P/N:94A150110) |
 |
 |
 |

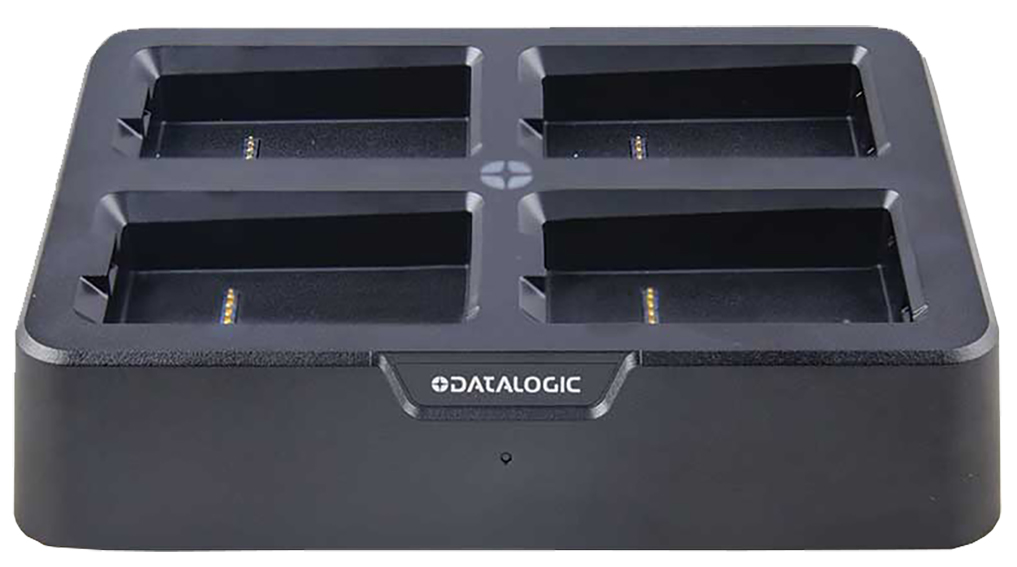

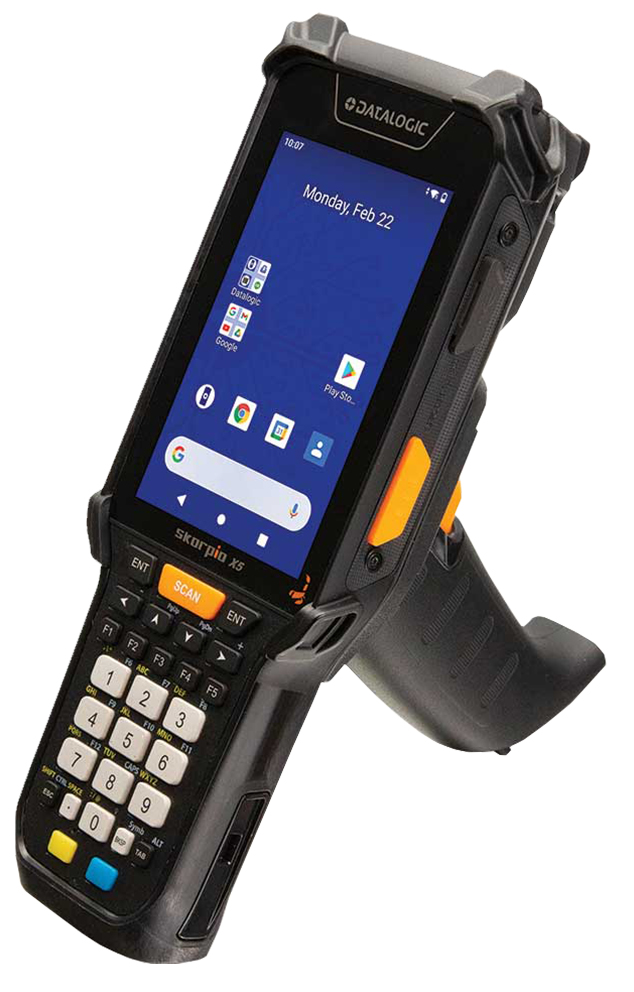

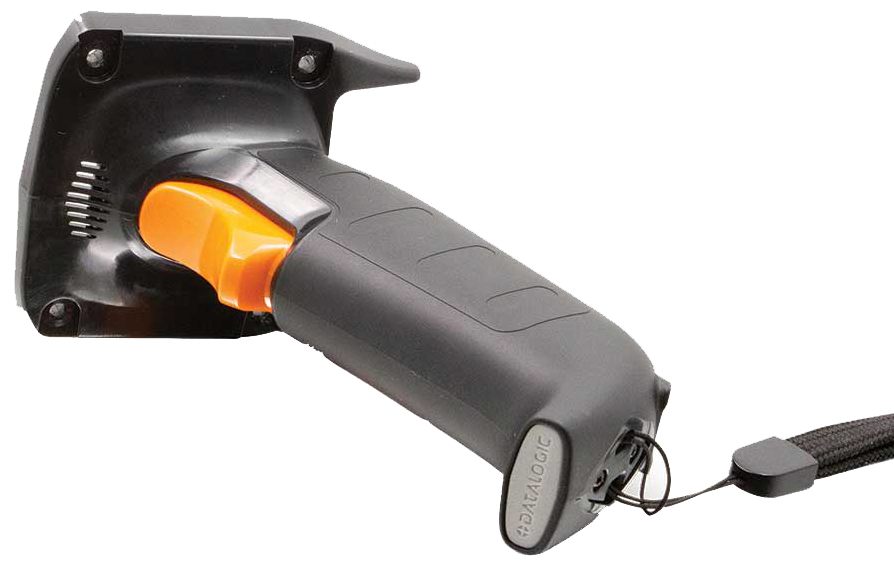

| 4 Slot Battery Charger | Pistol | Rubber Boot |
